HIgh Speed Purlin Roll Forming Machine

Email: info@wxhrf.com

Tel: 0510-81153870

Whatsapp: +8615961895852

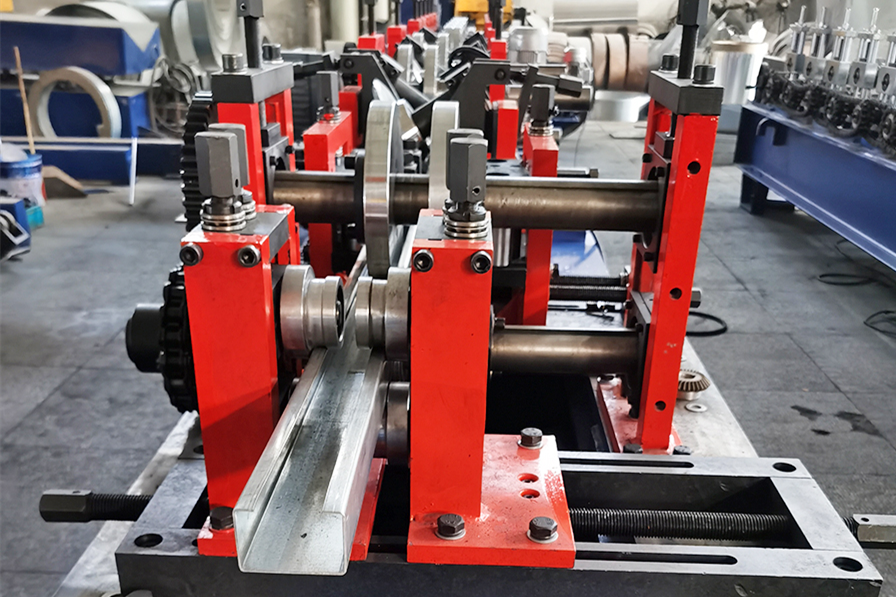

HIgh Speed Purlin Roll Forming Machine

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

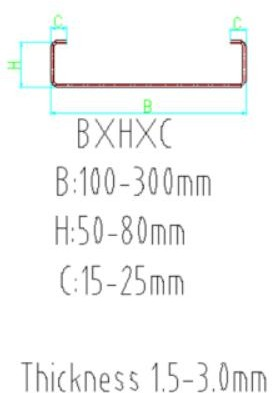

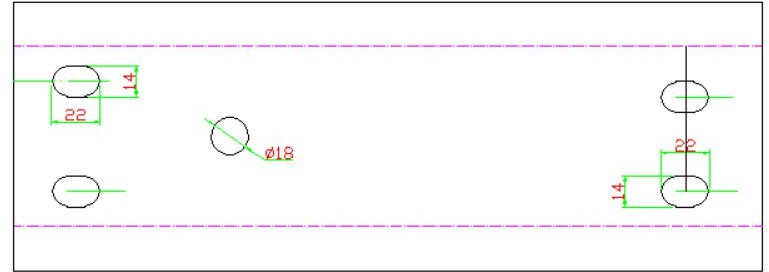

Profile Drawing

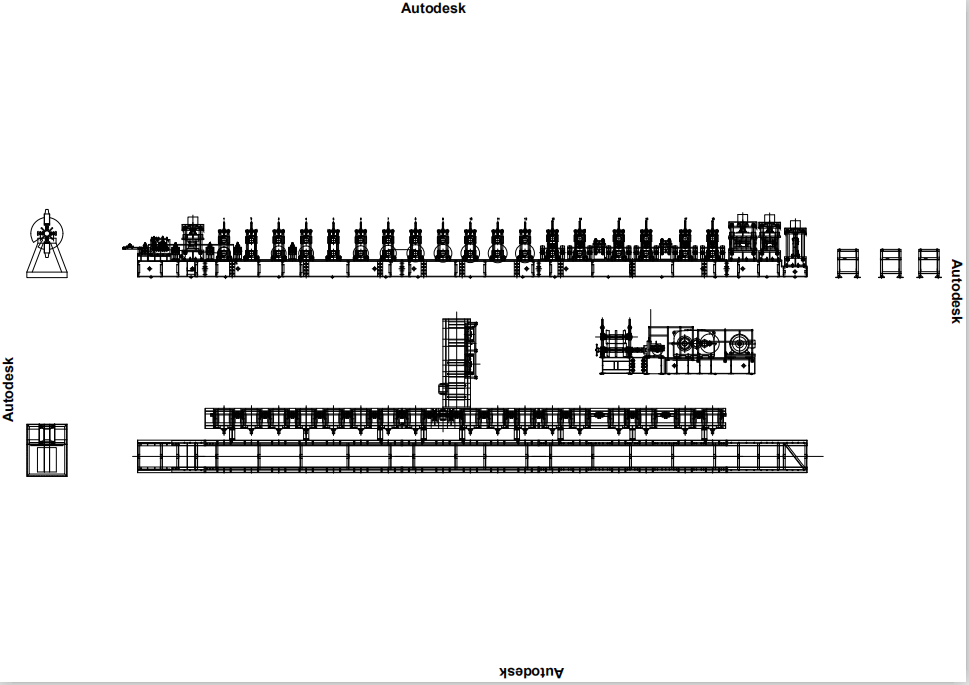

The Whole Line Flowchart

5T motorized decoiler---feeding&leveling machine---holes punching for bottom width---holes punching for flange height -hydraulic pre-cut--Roll Forming- rectified head changeable

cutting system--4m Outables

Basic Specification of the Line

NO	ITEM		PARAMETER	REMARK
1.	Suitable material	Type	Galvanized Coil,cold rolled steel coil,S350
		Tensile stress( Mpa)	Yield strength: 330MPa, Tensile strength 480Mpa
2.	Fisnished C purlin demension		1) C purlin width: 80- 300mm variable controlled by PLC automatically 2) C purlin flange height:50-80mm vairable and controlled by PLC 3）Lip size: 10-25mm variable marked with C in the drawing 5) Thickness: 1.5-3.0mm
3.	Roll Forming stands		18	Cast iron stands
4.	Main forming machine motor power(kw)		18.5kw	Chinese brand motor
5.	2 pinch rolls stations &7 rolls Leveling motor		4kw	Chinese brand motor
6.	Hydraulic station power(kw) for main forming machine		7.5kw	Chinese brand motor
9.	Motors for the height adjustment		1.5kw( 2- 0.75kw)	Chinese brand motor
10	Motor for purlin width adjustment		1-3kw	Chinese brand motor
11.	Total power(kw)		About 46.5kw
12.	Power supply requirement		380V,50Hz,3Ph
13.	Machine dimension(LxWxH,m)		About 10mx1mx1.2m
14.	Machine color		Blue with yellow color combination
