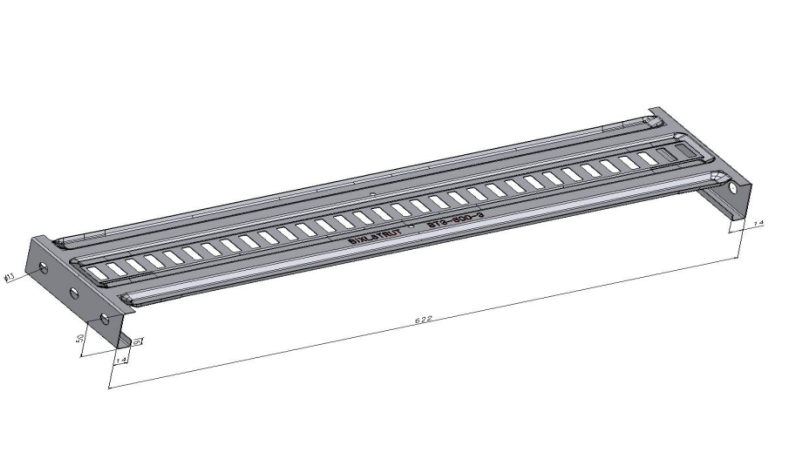

1.This cable tray roll forming machine, which can produce the width from 150mm to 600mm and flange height from 50mm to 75 mm ,sheet thickness from 0.6-1.0mm (it is light-weight channel cable tray) and this model is used widely in Australia and New Zealand and more and more popularly used all over the world nowadays.

2.The finished cable tray product are formed after decoiling,servo-feeding and punching mould( it is one kind of progressive forming and punching die)and finally the machine will automatically cut into the precise length according to the customer requirements .

1.Raw material request:G350-G450Mpa cold rolled or hot rolled steel,galvanized steel

2.Material thickness:0.5mm-1.0mm

3.Whole line working speed:14m/min

4.We adopt cantilever type machine structure

5.20 forming stations

6.Motor power:2x11kw Siemens brand

7.Material max. thickness:0.8-1.5mm

8.The diameter of the shaft: 75mm

9.Rollers material: GCr15,quenching treatment:HRC58-62°

10.Material of shaft:40Cr heat treatment

11.Driving system:chain drive 1.2”HRB brand made in China

12.With fully automatic adjustment from one width to another width it just needs few seconds to finish changing:      Width from 50mm to 200mm: we use 1x 2.2KW motor.

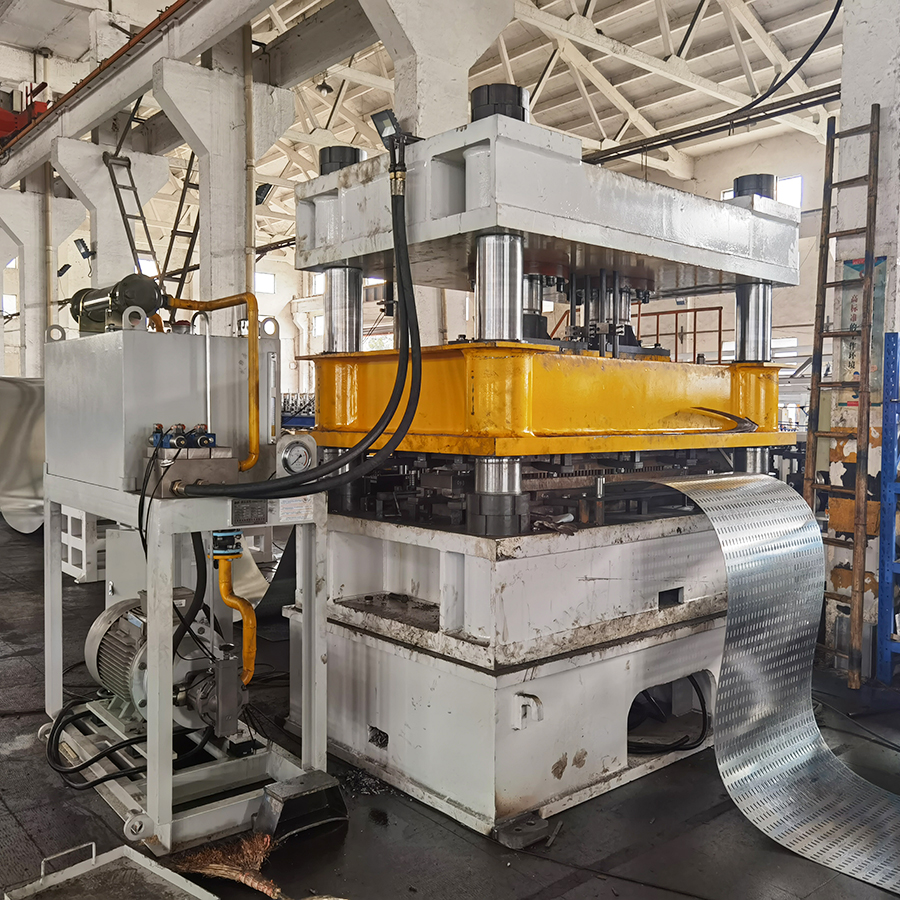

3T Hydraulic de coiler--Leveling--Servo feeder--200T Punching press--pit  ---Roll Forming- Flying shear with end expand- Output tables

1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects,

comprehensive energy consumption is low, simple operation and maintenance, low operating cost.

2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
