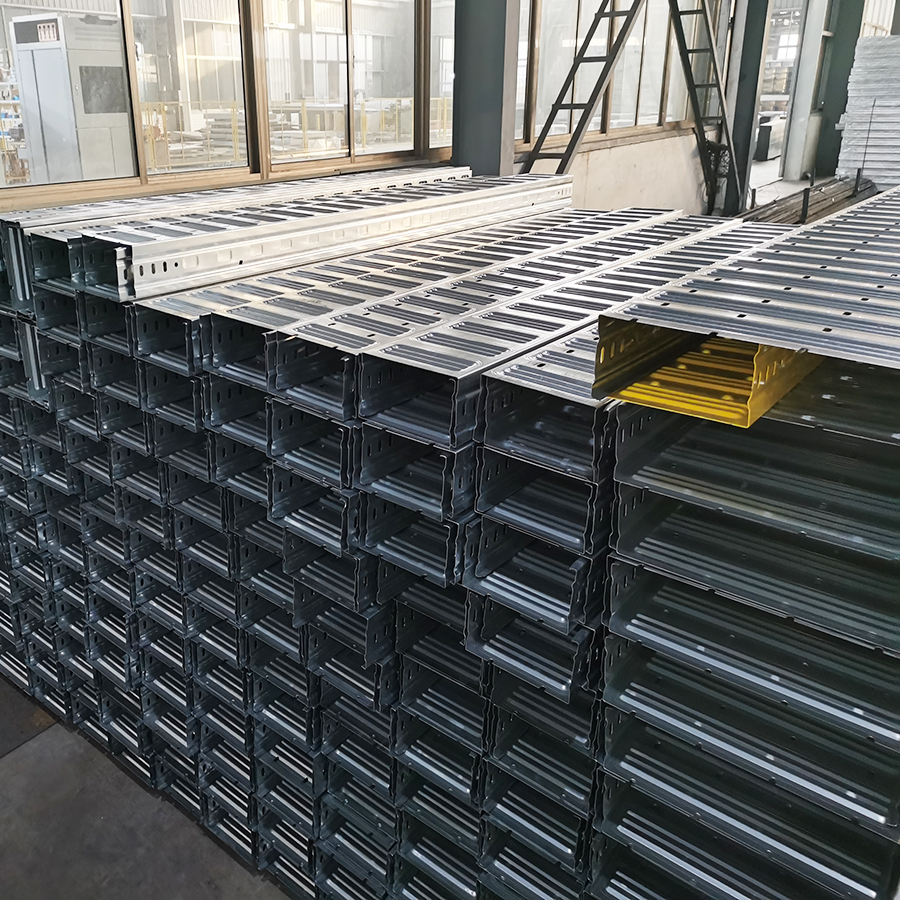

Russia Cable Tray Machine
5T hydraulic decoiling---Leveling(7rolls)---Four-station hydraulic press(servo feeder )---Guiding&Feeding---Roll forming---Hydraulic cutting---Outables
|
Decoiler: |
Electric feeding, hydraulic tightening |
|
Loading weight: |
5T |
|
Coil ID: |
φ508mm/φ610mm |
|
Coil expansion range: |
φ450-φ530mm/φ630mm |
|
Motor power: |
5.5kw |
|
Hydraulic system power: |
3kw Shaft diameter: φ190mm Tighten cylinder diameter: φ200mm |
|
Hydraulic system oil pump: |
vane pump Hydraulic system solenoid valve brand: Beijing huade |
